Description
Sprinklers with electrical activation.

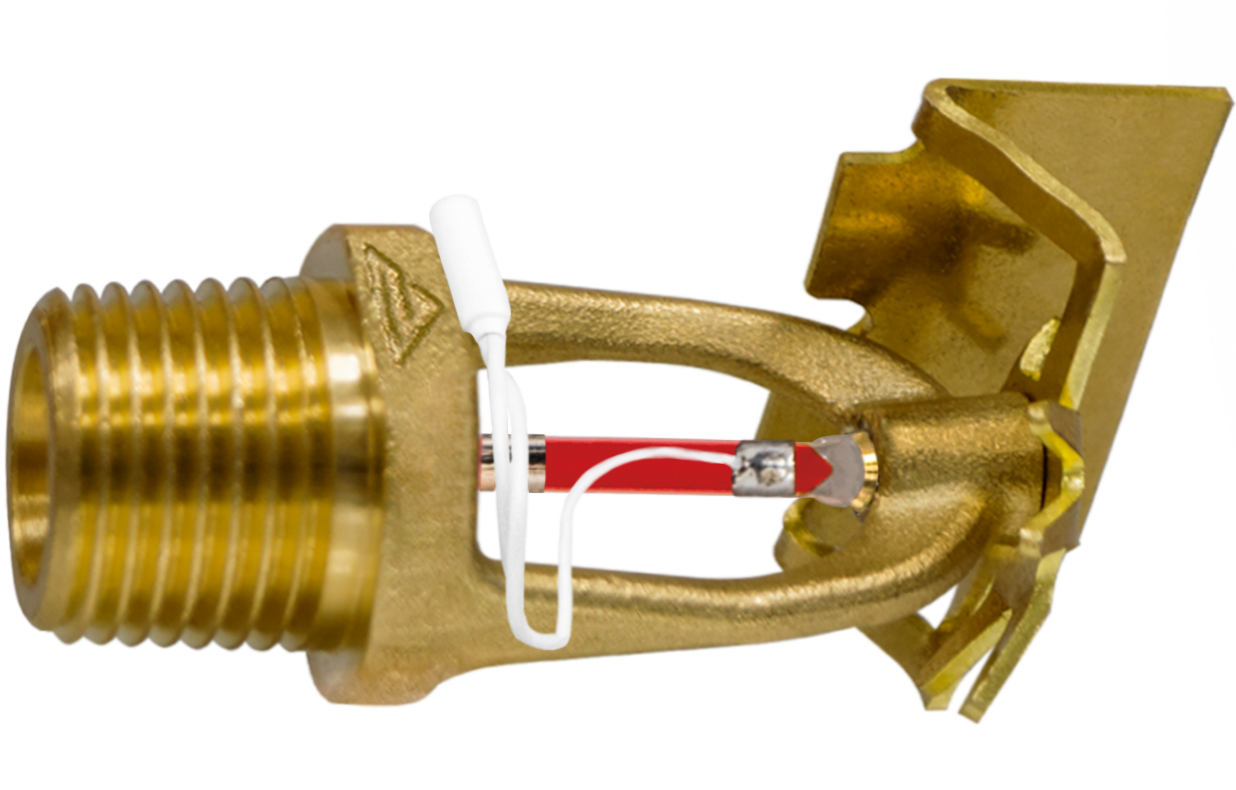

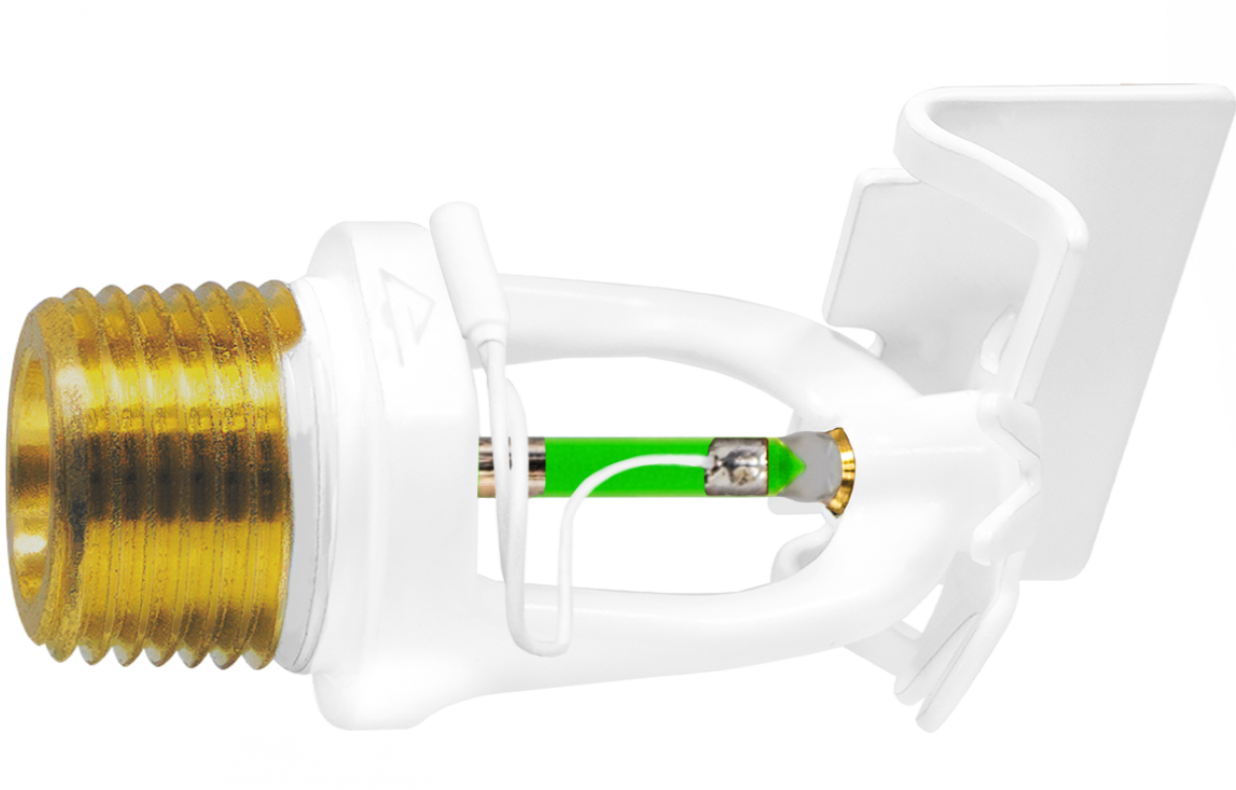

Horizontal sprinkler with electrical activation (fire sprayer)
Capacity factor - 0.42 (80)
Protected area - not less than 12 sq.m.
Actuation temperature - 57° С, 68° С , 79° С, 93° С.
Flask of fast response - 3mm.
Connecting thread - 1/2 inches
Color - without cover (bronze), with cover (nickel, white)
Diagram of irrigation intensity dependence on pressure at application of water solutions with capacity factor K = 0.42 on 12 m2 protected area.
Diagram of irrigation intensity dependence on pressure at application of foam solutions with capacity factor K = 0.6 on 12 m2 protected area.
Sprinkler map of irrigation intensity for horizontal sprinklers at application of water and foam with capacity factor K=0,6/115/8,0
Installation height – 2.5 m.
Characteristics
| Atomizer weight | 0,07 kg |
| Connecting thread | ½ inch |
| Dimensions | 58х30 mm |
| Installation orientation | Horizontal |
| K-factor | 0.42 (80) |
| Outlet diameter | 13 mm |
| Performance factor | 0,42 |
| Protected area | 12 m2 |
| Sprinkler flask diameter | 3 mm |
| Sprinkler response temperature | 57° С, 68° С , 93°С |
