685.00 rub.
Description

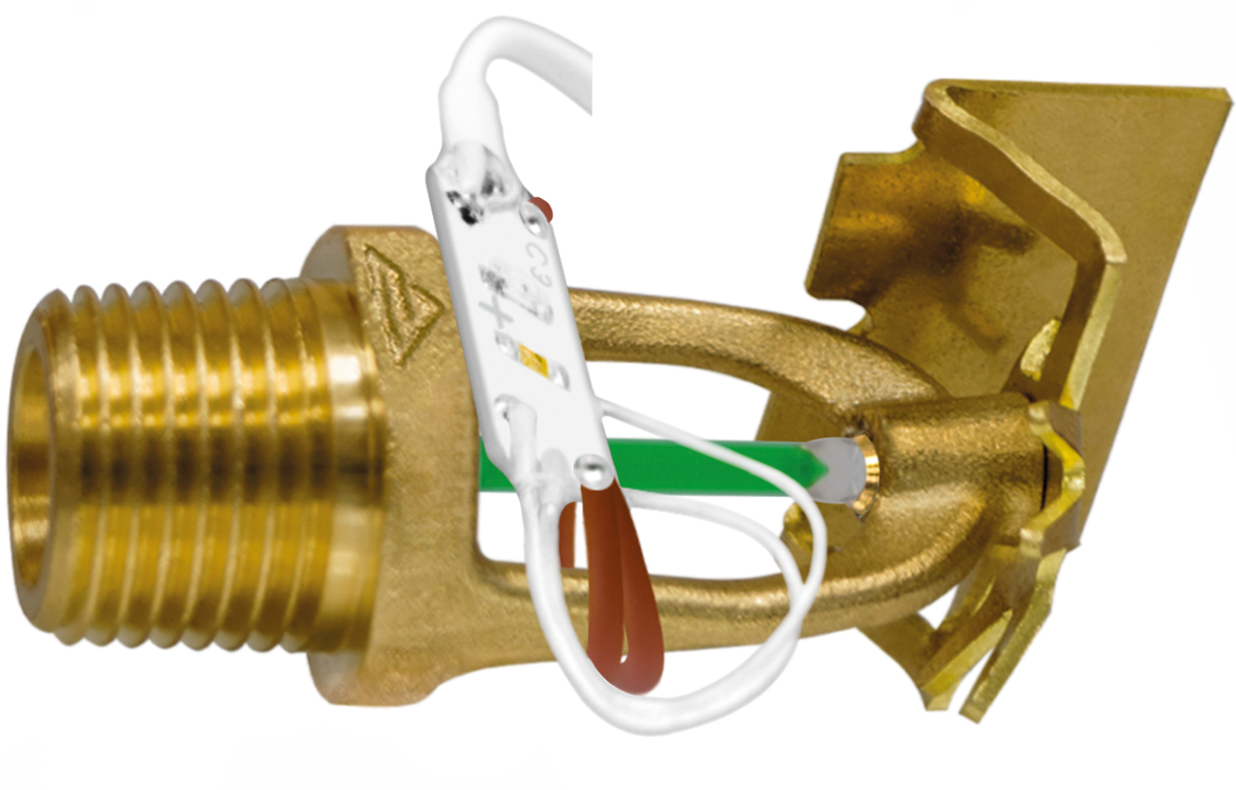

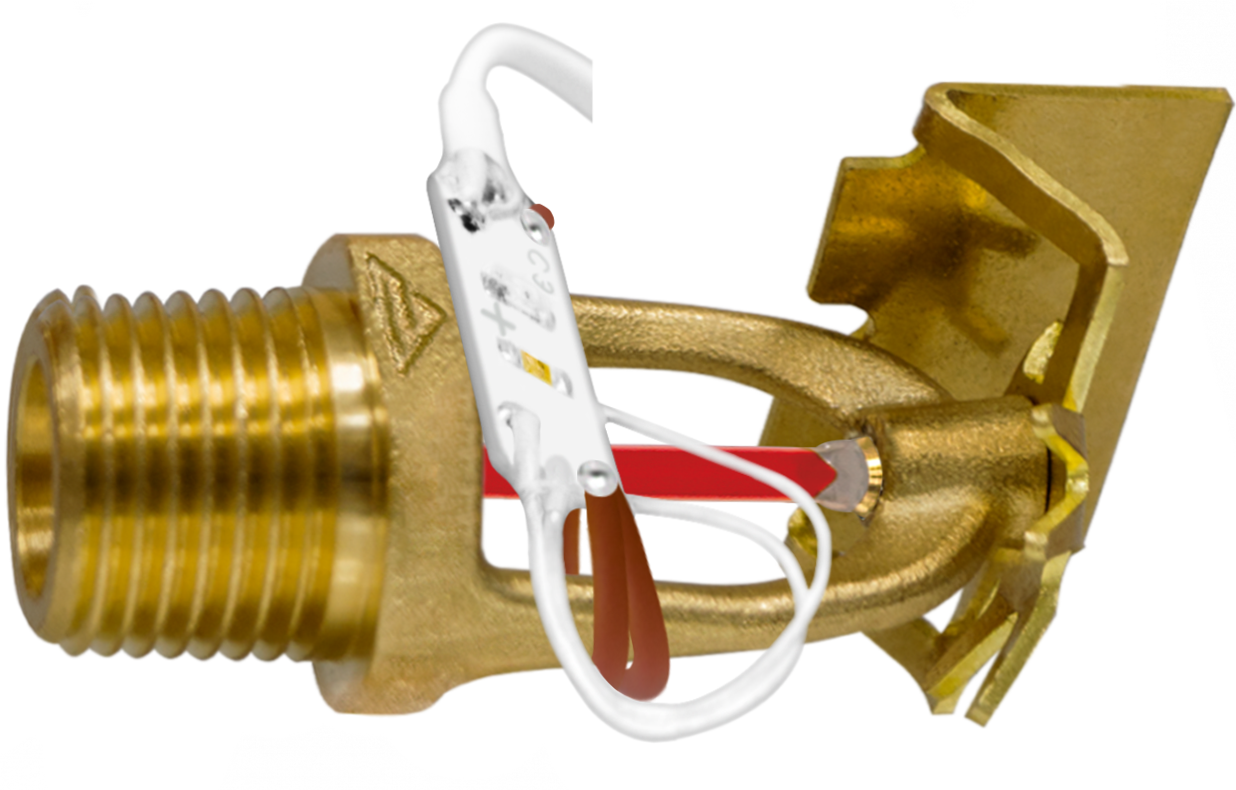

Sprinkler with electral activation (SE) - are sprinklers that are used to gether with a special control panel UKD (06) SE.
- Horizontal sprinkler with electrical activation (fire sprayer)
- Capacity factor - 0.42 (80)
- Protected area - not less than 12 sq.m.
- Actuation temperature - 57° С, 68° С , 79° С, 93° С.
- Flask of standard response - 5 mm, of fast response - 3mm
- Connecting thread - 1/2 inches

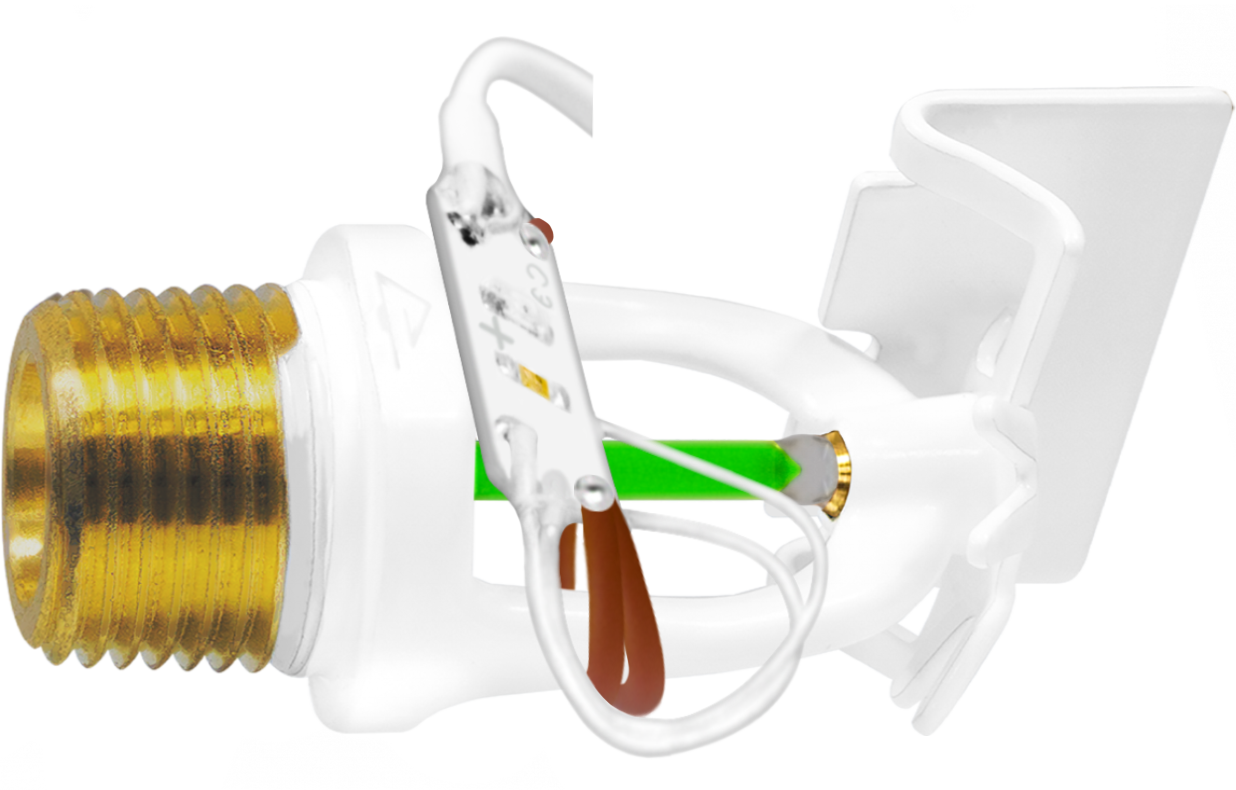

- Color - without cover (bronze), with cover (nickel, white)
Diagram of water irrigation intensity for universal horizontal sprinklers with capacity factor K=0.42/80/5.5
Characteristics
| Atomizer weight | 0,064 kg |
| Connecting thread | ½ inches |
| Dimensions | 58х30 mm |
| Installation orientation | Horizontal |
| K-factor | 5,5 (80) |
| Outlet diameter | 11,8 mm |
| Performance factor | 0,42 |
| Sprinkler flask diameter | 3 mm |
| Sprinkler response temperature | 57° С, 68° С , 93°С |
